BOW STOP REST ASSEMBLY PO1977

BOW STOP REST ASSEMBLY

• HOT DIPPED GALVANIZED BOW CATCHER BOW STOP 45 DEG ANGLE
• ADJUSTABLE PINNACLE 2-PC BOW REST ASSY.W/BUMPERS
• LENGTH IS ADJUSTABLE FROM 26” MIN 35” MAX
• AT MIN LENGTH THE MINIMUM HEIGHT FROM FRAME UP TO CENTER OF GREY BUMPER IS 24”
• AT MAX LENGTH THE MAXIMUM HEIGHT FROM FRAME UP TO CENTER OF BUMPER IS 30”

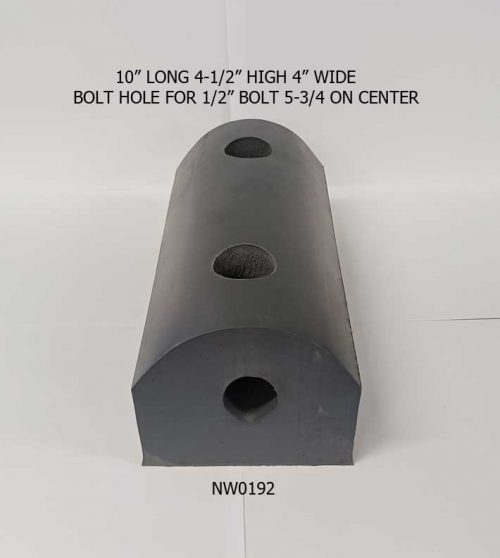

• HEAVY DUTY GREY NON MARKING RUBBER BUMPERS MEASURE 10”L X4-1/2”W X3-1/2”H NW0192
• 10” OF SPACE BETWEEN RUBBER BUMPERS.
• 9” DISTANCE FROM CENTER OF RUBBER BUMPER TO CENTER OF V IN BOW STOP.
• RUBBER BUMPERS CAN BE PUCHASED SEPERATLY NW0192
• MOUNTING U-BOLTS ARE INCLUDED TO FIT 3”X3” OR 3”X4” TONGUE.
• DURING CHECKOUT YOU CAN NOTATE THE TONGUE SIZE IN ORDER NOTES.
