Regular (Spring) Axle Worksheet

Your Full Name or Company Name*

Address*

Street Address Address Line 2 City State / Province / Region ZIP / Postal Code Country

Phone*

Mobile Phone

Email*

--THESE ANSWERS WILL PROVIDE THE INFORMATION NEEDED TO QUOTE A PRICE AND BUILD AXEL/S--

Is this axle for a magic tilt trailer?*

Yes

No

Trailer Model No.

VIN#

Make or Brand*

VIN#

Number Of Axles*

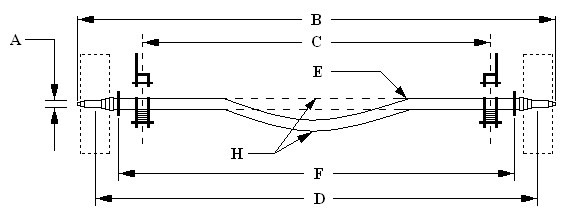

A. Spindle Size (Outer and Inner Bearing Size Numbers - Choose One Selection*

1-1/16"X1-1/16"

1-1/16"X1-3/8"

1-1/4"X1-3/4"

A1. Please Choose One*

STANDARD SPINDLE

POSI-LUBE SPINDLE

B. Overall Length*

C. Leaf Spring (Center To Center)*

D. Hub Face To Hub Face or Center of Tread To Center Of Tread*

E. Material Used (Tube Size) - Choose One*

1-1/2"X1-1/2"

2"X2"

2"X3"

F. Springs Mounted Over Axle or Under Axle*

OVER AXLE

UNDER AXLE

G. Type of Axle - Choose One*

STRAIGHT AXLE

"V" AXLE-BENT

H. Brake Flange Style*

4 Hole 3500# Brake Flange

UFP 6-8 LUG Brake Flange

Standard (KODIAK) 5 Hole Brake Flange

None

I. Select Hub Style*

NO HUBS

DISC BRAKES 5 LUG

DISC BRAKES 6 LUG

DISC BRAKES 8 LUG

4 LUG HUBS

5 LUG HUBS

6 LUG HUBS

8 LUG

Choose One*

BEARING PROTECTORS (BUDDY BEARINGS)

DUST CAPS

POSILUBE CAPS

DISCLAIMER: AXLES ARE BUILT TO CUSTOMERS SPECIFICATIONS DETAILED ON THIS WORKSHEET. AXLES ARE NEITHER RETURNABLE OR REFUNDABLE WHEN BUILT TO CUSTOMERS SPECIFICATIONS. CAUTION: THESE COMPONENTS ARE BUILT FOR MAGIC TILT TRAILERS AND MAY NOT BE COMPATIBLE WITH SOME TRAILER MANUFACTURERS AXLE AND BRAKE COMPONENTS. OUTCAST WATERSPORTS WILL NOT BE RESPONSIBLE FOR COMPATABILITY ISSUES BETWEEN TRAILERS AND BRANDS.
